TFT LCD Display Bafang Mid Motor BBS01B BBS02B BBSHD Electric Bicycle Speed Controller 24V/36V/48V/60V Kits E-Bike 8FUN Parts

Type Display

Brand Name BLUENERGY

Screen Material & Size High-contrast 3.2inch IPS colorful matrix screen

Speed display AVG SPEED, MAX SPEED, SPEED (Real-time)

Kilometer / Mile Can be set according to customers' habits

Smart battery indicator Provide a reliable battery indicator

9-level Assist 3-level/5-level/9-level

Mileage indicator Odometer/ Trip distance/ Clock/ Riding time/ Range

Power indicator real time power indicator, digital or analog

Software upgraded Software can be upgraded through UART

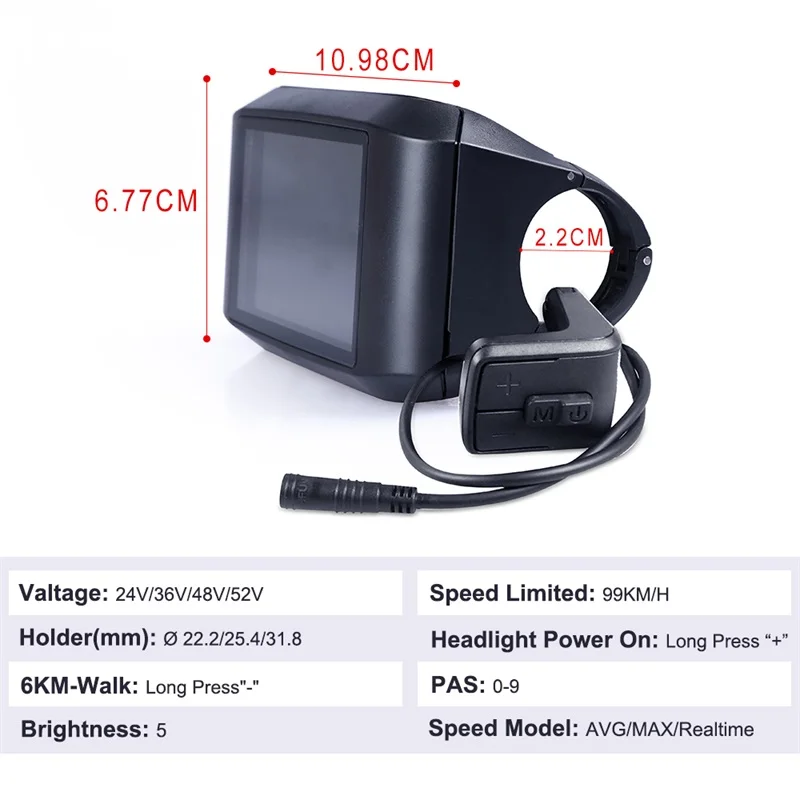

Dimensions host/L110mm*W68.2mm*H68mm

Fit for Bafang BBS01 BBS01B BBS02 BBS02B BBSHD

Voltage 24V/36V/48V/60V

Electrical Parameters  3.2inch IPS screen  24V/36V/48V/52V battery supply  Rated operating current : 40mA  Off leakage current < 1uA  Max output current to controller : 100mA  Operating temperature : -20～70℃, Storage temperature : -30～80℃ Dimensions & Material  Product shell is ABS, transparent window is made with high strength Acrylic.  Dimensions : host/L110mm*W68.2mm*H68mm  Suitable for low temperature，Max -20℃.  High-contrast 3.2inch IPS colorful matrix screen.  Ergonomic external button design, easy to operate.  Speed display: AVG SPEED, MAX SPEED, SPEED (Real-time).  Kilometer / Mile: Can be set according to customersrsquo habits.  Smart battery indicator: Provide a reliable battery indicator.  9-level Assist : 3-level/5-level/9-level /UBE（6-level）optional.  Mileage indicator: Odometer/ Trip distance/ Clock/ Riding time/ Range.  Power indicator: real time power indicator, digital or analog.  Error code indicator.  Software upgraded: Software can be upgraded through UART. Warranty Aggrement: Motor Kits,warranty time 12 month except phycial damage and wrong operation. Battery,warranty time 12 month except phycial damage and wrong operation. Accessories,30 days except phycial damage and wrong operation Import Duties: Import duties, tax and other charges are not included. However wersquoll value the amount lower, try to avoid you pay high custom duties. Return & Refund: It is our pleasure to see customers have fun with our products, if you decide to return the items within 15 days after receipt,we will refund you, the return items must be in original conditions. Feedback: Your satisfaction and positive feedback is very important for us, it will be very kind of you to leave us 5 stares feedback, if you have any problems, don`t hesitate tocontact us, we will do our best to serve with you.
